GitOps

Constellations IaC repository uses the Apps-of-Apps Pattern for Cluster bootstrapping by applying a root ArgoCD app that then syncs all other Apps:

# applications/root-argocd-app.yml
apiVersion: argoproj.io/v1alpha1
kind: ApplicationSet
metadata:
  name: root-app
  namespace: argocd
spec:
  generators:
    - clusters:
        selector:
          matchLabels:
            argocd.argoproj.io/secret-type: cluster
  template:
    metadata:
      name: root-argocd-{{metadata.annotations.cluster_name}}
    spec:
      project: default
      source:
        repoURL: https://github.com/clear-route/constellation-iac.git
        targetRevision: dev
        path: "applications/argocd/{{metadata.annotations.cluster_name}}"
      destination:
        server: https://kubernetes.default.svc
        namespace: argocd
      syncPolicy:
        automated:
          prune: true
          selfHeal: true

Directory Structure

> cd applications
> tree -d
.
├── argocd          # argocd apps
│   ├── dev
│   ├── prod
│   └── sandbox
├── external            # internet facing apps
│   └── <app-name>      # application directory
│       ├── base        # base manifests
│       └── overlays    #  kustomize overlays
│           └── sandbox # sandbox overlays
│           └── dev     # dev overlays
│           └── prod    # prod overlays
├── internal            # Clearroute internal facing apps
│   ├── <app-name>      # application directory
│       ├── base        # base manifests
│       └── overlays    # kustomize overlays
│           └── sandbox # sandbox overlays
│           └── dev     # dev overlays
│           └── prod    # prod overlays
├── management                # management applications, that are needed to operate cluster and run applications
│   ├── cert-manager          # helm values and manifests for cert-manager
│   ├── cluster-autoscaler
│   ├── external-dns
│   ├── external-secrets
│   ├── kube-prometheus-stack
│   └── traefik

ArgoCD

argocd CLI

Tip

Download the ArgoCD CLI from here

Run the following command to authenticate to Constellation using the argo CLI:

argocd login --grpc-web argocd.{sandbox,dev,prod}.clearroute.io --sso

Webterminal

Note

This might not work in the Safari.

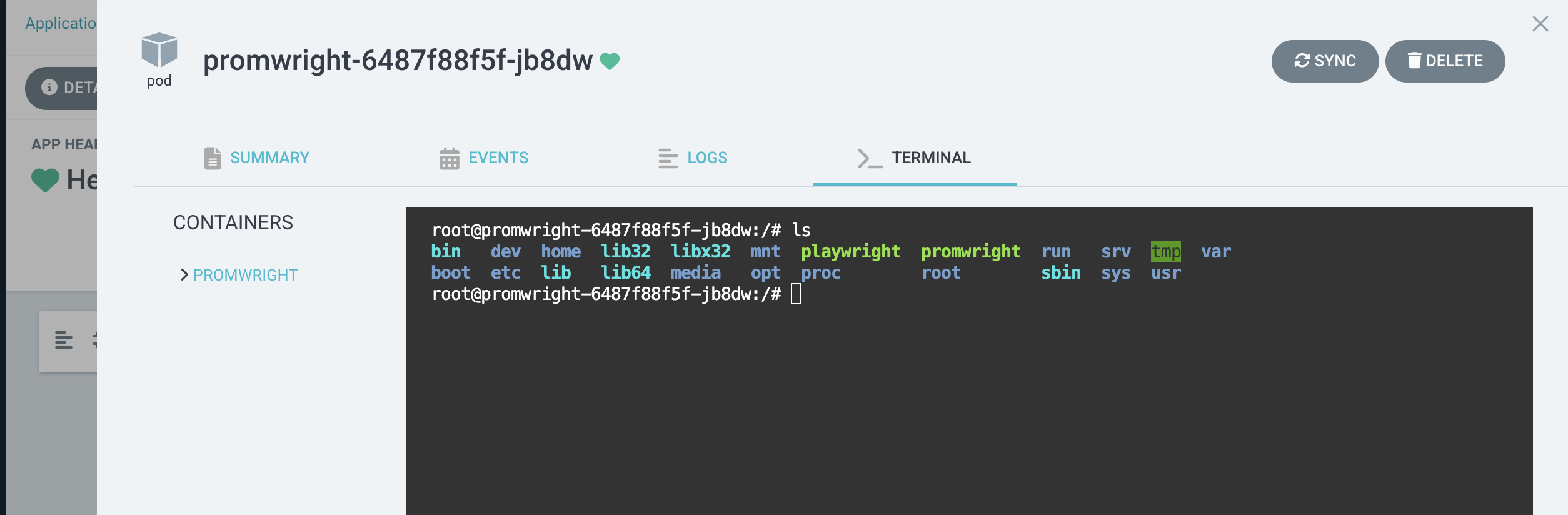

On dev and sandbox the Web-based Terminal is enabled, which allows you to run arbitrary commands in any container, which is especially useful for troubleshooting:
